Digital Display Hardness Test Equipment HRS-150 20-88HRA 75kg

Product Categories
Beijing Samyon Instruments Co., Ltd.
Contact Now

Digital Display Hardness Test Equipment HRS-150 20-88HRA 75kg

Brand Name : SAMYON

Model Number : HRS-150

Certification : ISO

Place of Origin : CN

MOQ : 1set

Price : Can be negotiated

Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A

Supply Ability : 100sets per week

Delivery Time : 3-5days

Packaging Details : Wooden case

Name : Rockwell Hardness tester

Standard : ISO 6508-2: 2015

Test force : 588.4, 980.7, 1471N

Measuring range : 20-88HRA

Depth of throat : 130mm

Max sample height : 170mm

Contact Now

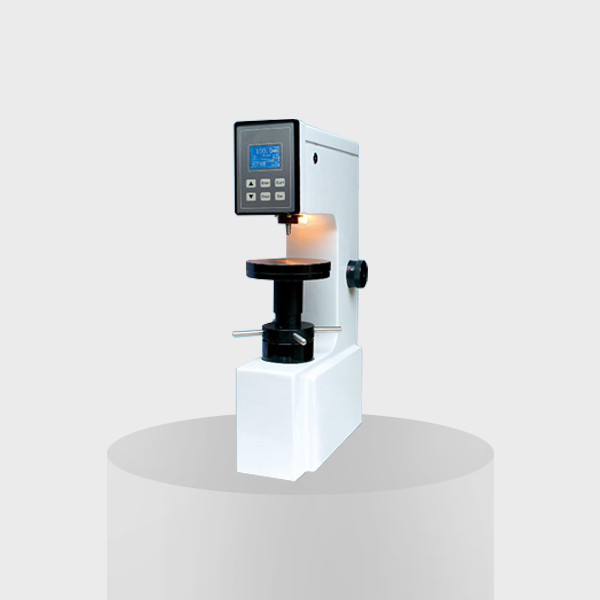

Model HRS-150 Digital Display Rockwell Hardness Tester For Rockwell Hardness Of Metallic Materials

Model Hrs-150 Digital Display Rockwell Hardness Tester

Application:

It is used to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Standard:

ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials

ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters

GB/T 230.2-2012 Metallic materials –Rockwell hardness test – Part 2: verification and calibration of testing machines(scales A,B,C,D,E,F,G,H,K,N,T)

Parameters:

Item Name Details
1 Test force 588.4, 980.7, 1471N (60,100,150kgf)
2 Measuring range 20-88HRA, 20-100HRB, 20-70HRC
3 Depth of throat 130mm
4 Max. height of test piece 170mm
5 Unit of display 0.1HR
6 Dimension 500 x 250 x 700mm
7 Weight approx. 75kg
8 Power 220V AC or 110V AC, 50 or 60Hz

Features:

1. After preliminary test force is applied, the handwheel will lock automatically. Automatic testing process, no human operating error

2. Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

3. Frictionless loading shaft, high precision testing force

　

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

Large V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.

Printer: 1 pc.
